- For 4 mm ø x 16 mm countersunk screws
- Quality classification under EN 15570, Level 2
- Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670
- Hole spacing 32 mm
- Oblong hole height adjustment ± 3 mm
- Stainless steel
Technical details
| Type of installation mounting plates | for screwing on |
| Mounting plate / Hole line distance LR / Hole spacing LA | Cross mounting plate / LR 37 / LA 32 |

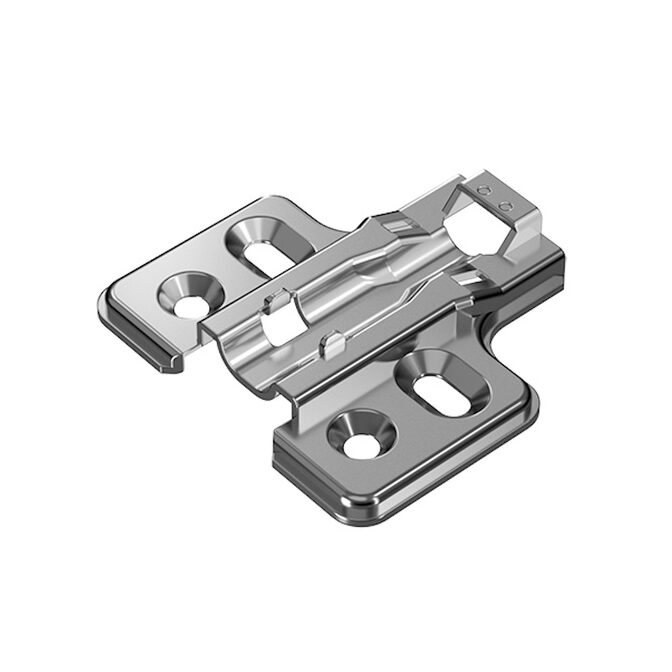

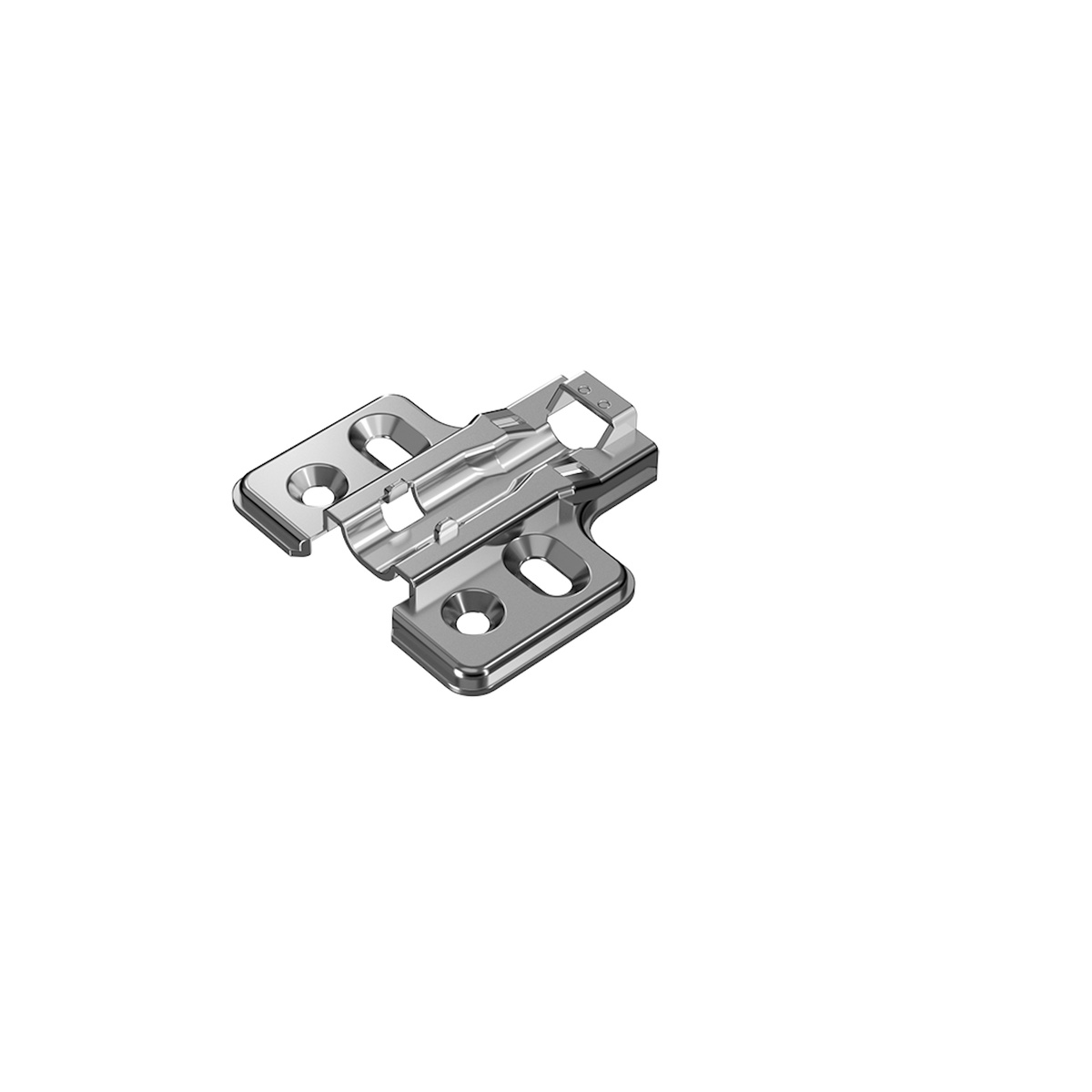

| Type of mounting plate | Cross mounting plate |

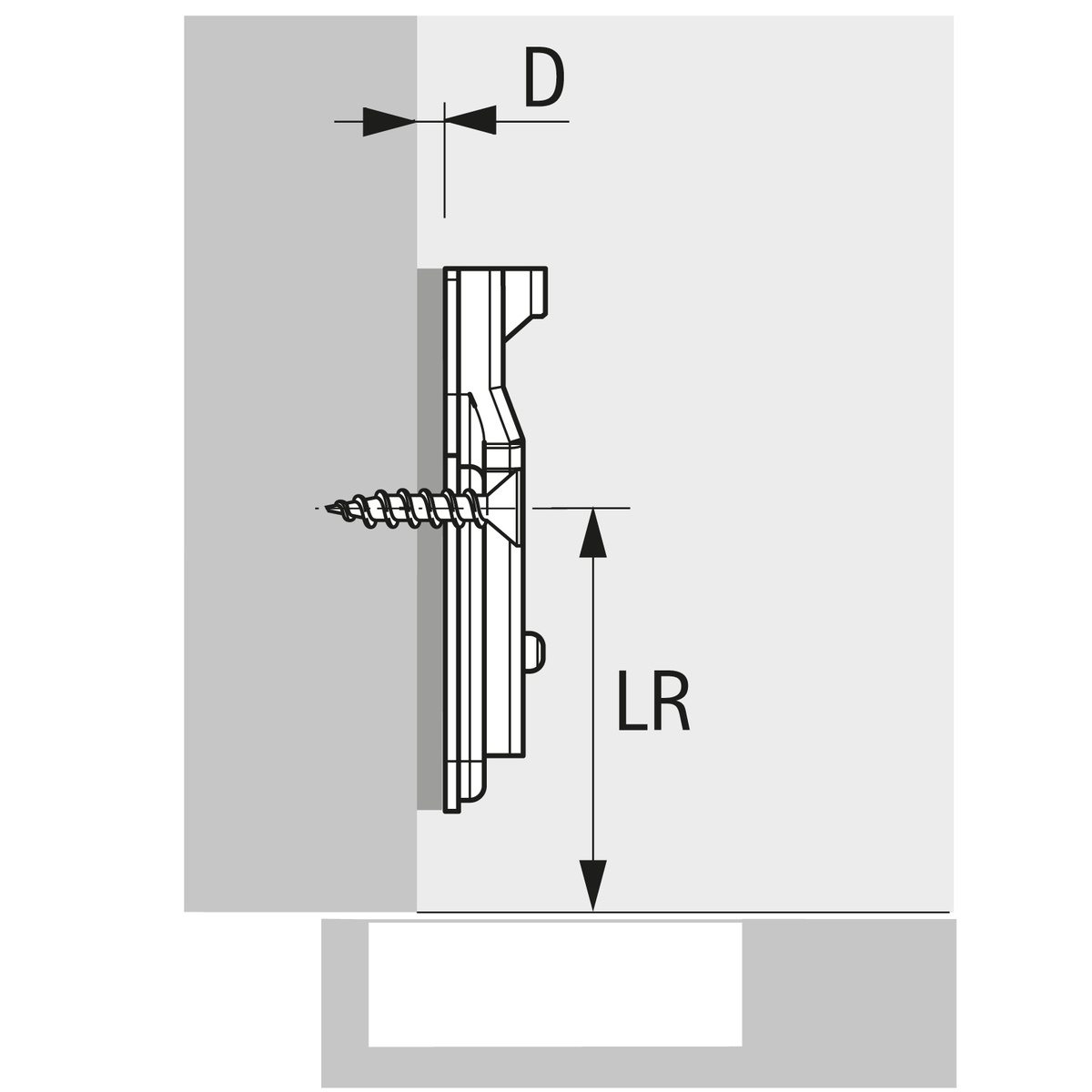

| Hole line distance LR | 37 mm |
| Height adjustment | oblong hole height adjustment |
| Hole line | Hole line 37 x 32 mm |
| Distance | 2 mm |
| Hole spacing | 32 mm |
| Material | stainless steel |
| Finish | stainless steel |
| Door mounting option | overlay half overlay inset |
| Type of installation | for screwing on |
| EAN | 4023149257483 |
| Order no. | 9289609 |
