- Concealed hinge with clip on installation and integrated Silent System
- Quality classification under EN 15570, Level 2
- Corrosion proof, 120h NSS (neutral salt spray test) to DIN EN 1670
- For door thickness of 14 – 22 mm
- Cup diameter 35 mm
- Cup depth 11.5 mm
- Integrated overlay adjustment + 2.5 mm / – 2.5 mm
- Integrated depth adjustment + 2 mm / – 1.5 mm

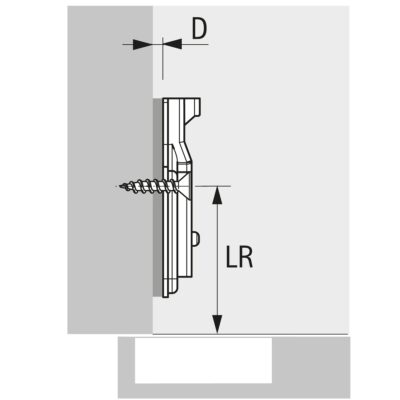

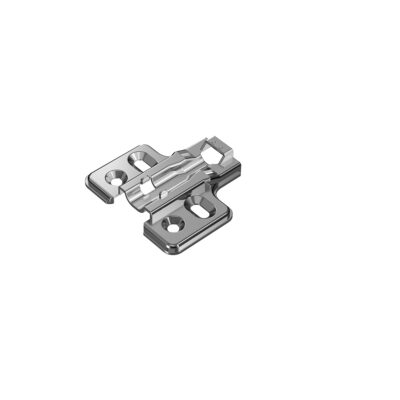

- Height adjustment at mounting plate
- 304 grade stainless steel
Technical details

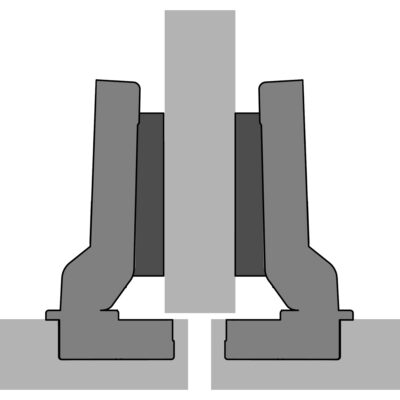

| Door mounting option | half overlay |
| Type of installation | for screwing on |

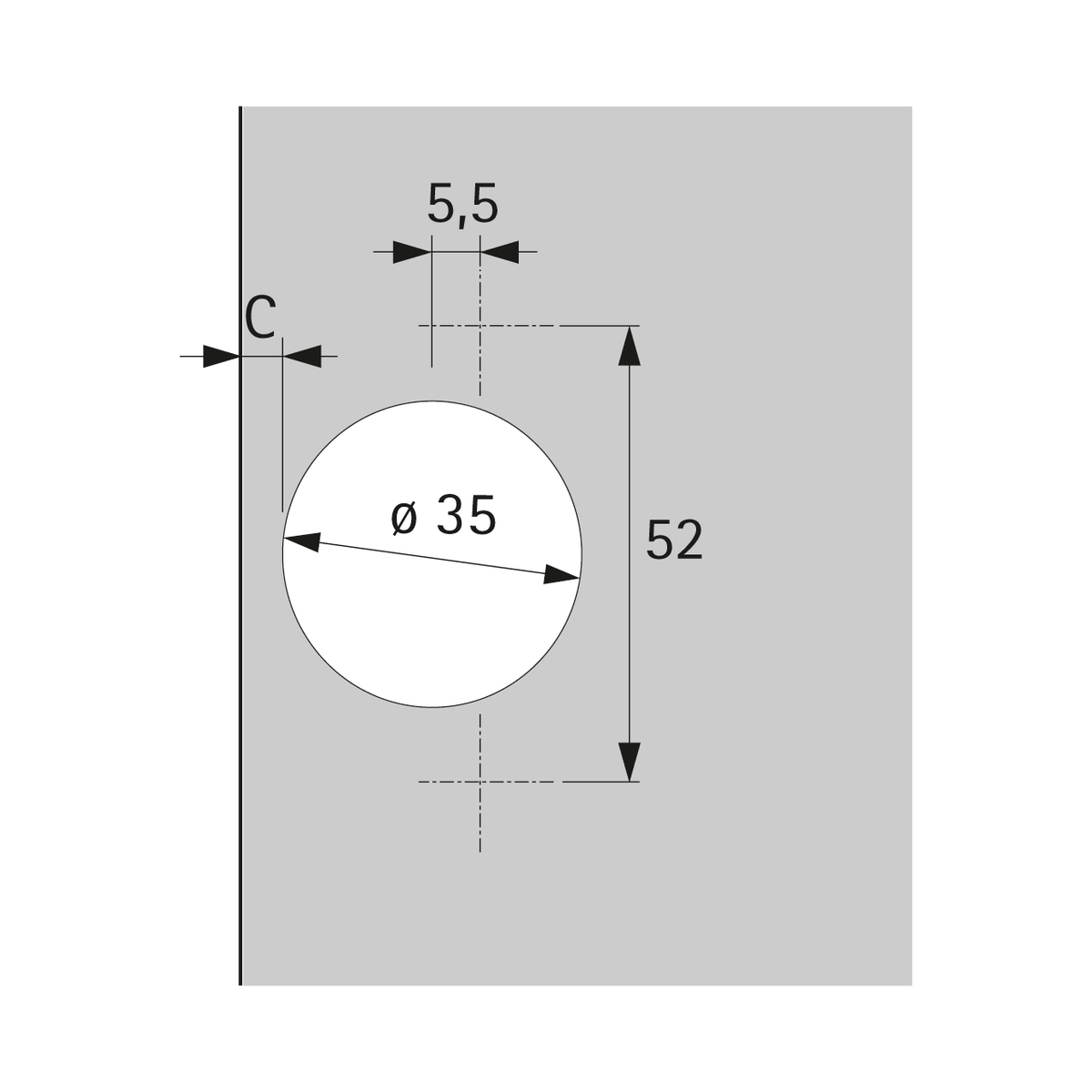

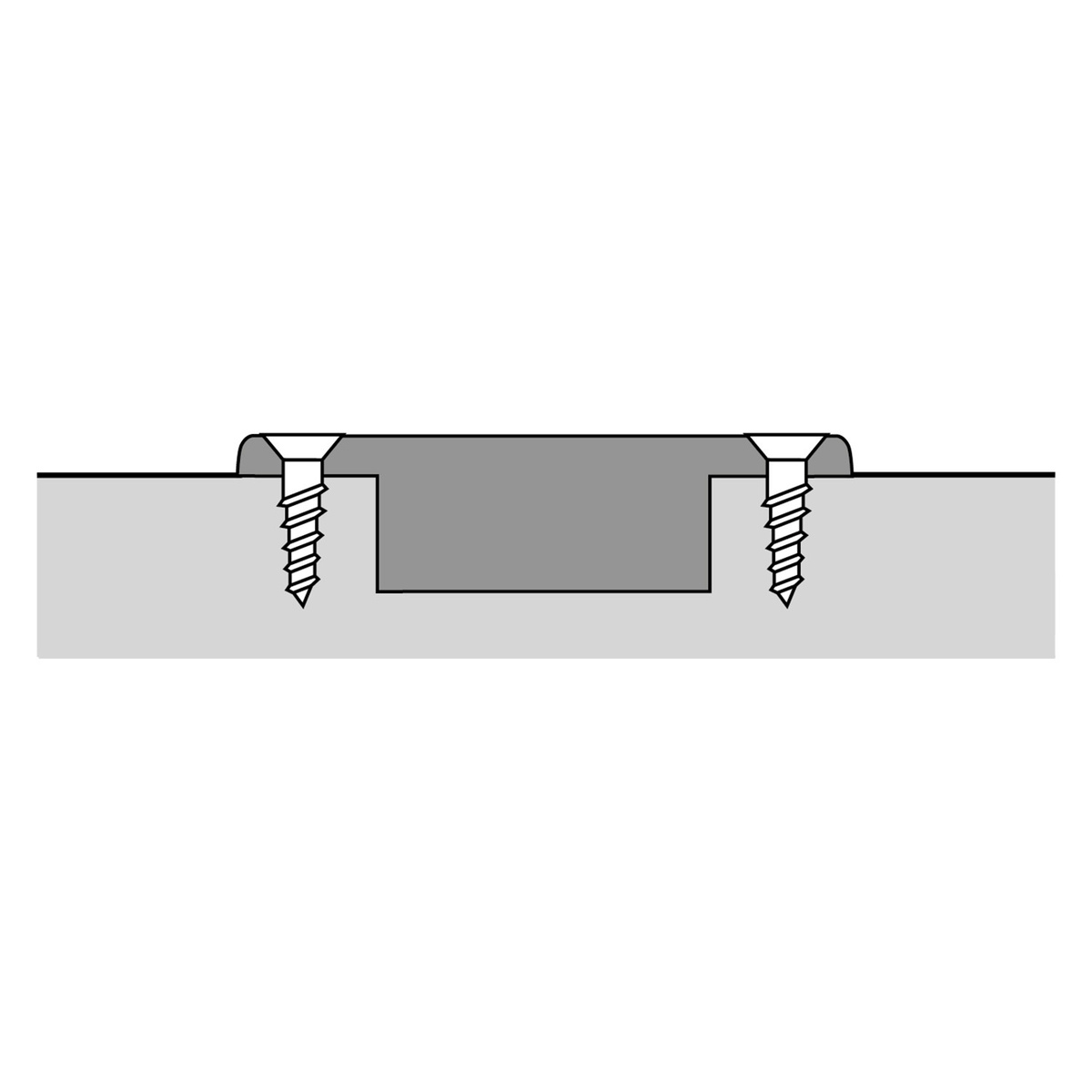

| Drilling pattern | TH 52 x 5,5 mm |
| Design | 90° construction |
| Door type | Standard door / wooden door Aluminium framed door (profile width from 50 mm) Wood framed door (profile width from 50 mm) |
| User friendly features | with integrated silent system |
| Opening angle | 105 ° |
| Min. door thickness | 14 mm |
| Max. door thickness | 22 mm |
| Cup version | TH 42 |
| Base | 3 mm |
| Cup diameter | 35 mm |
| Cup depth | 11.5 mm |
| Integrated overlay adjustment | +/- 2.5 mm |
| Integrated depth adjustment | + 2 mm / -1.5 mm |
| Mounting hole | – |
| Stay closed function | Yes |
| Finish | stainless steel |
| EAN | 4023149257452 |
| Order no. | 9289592 |
