- Cross mounting plate with oblong hole height adjustment
- For Sensys, Novisys and Intermat
- Quality classification under EN 15570, Level 3

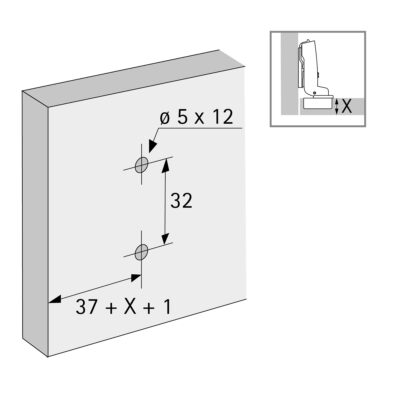

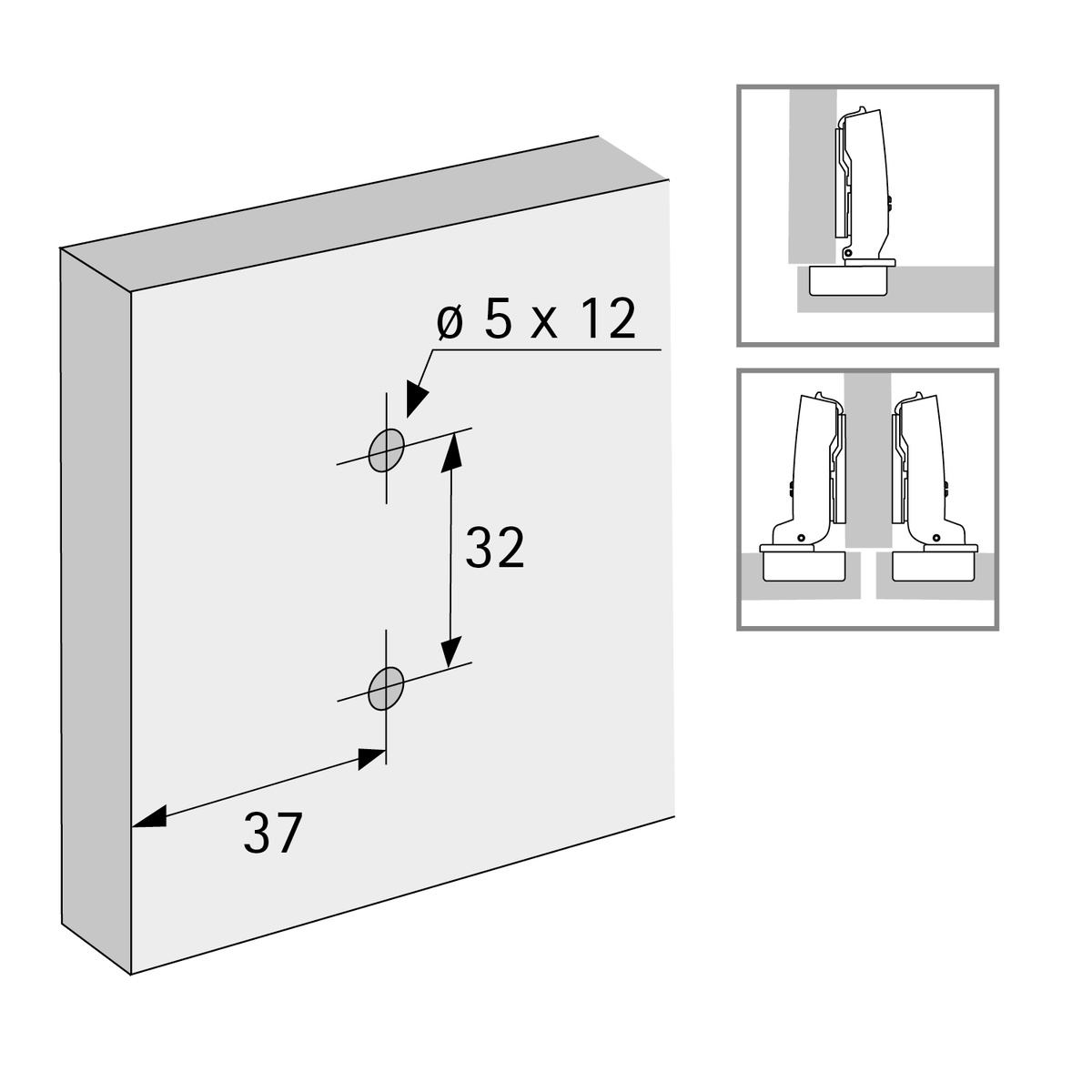

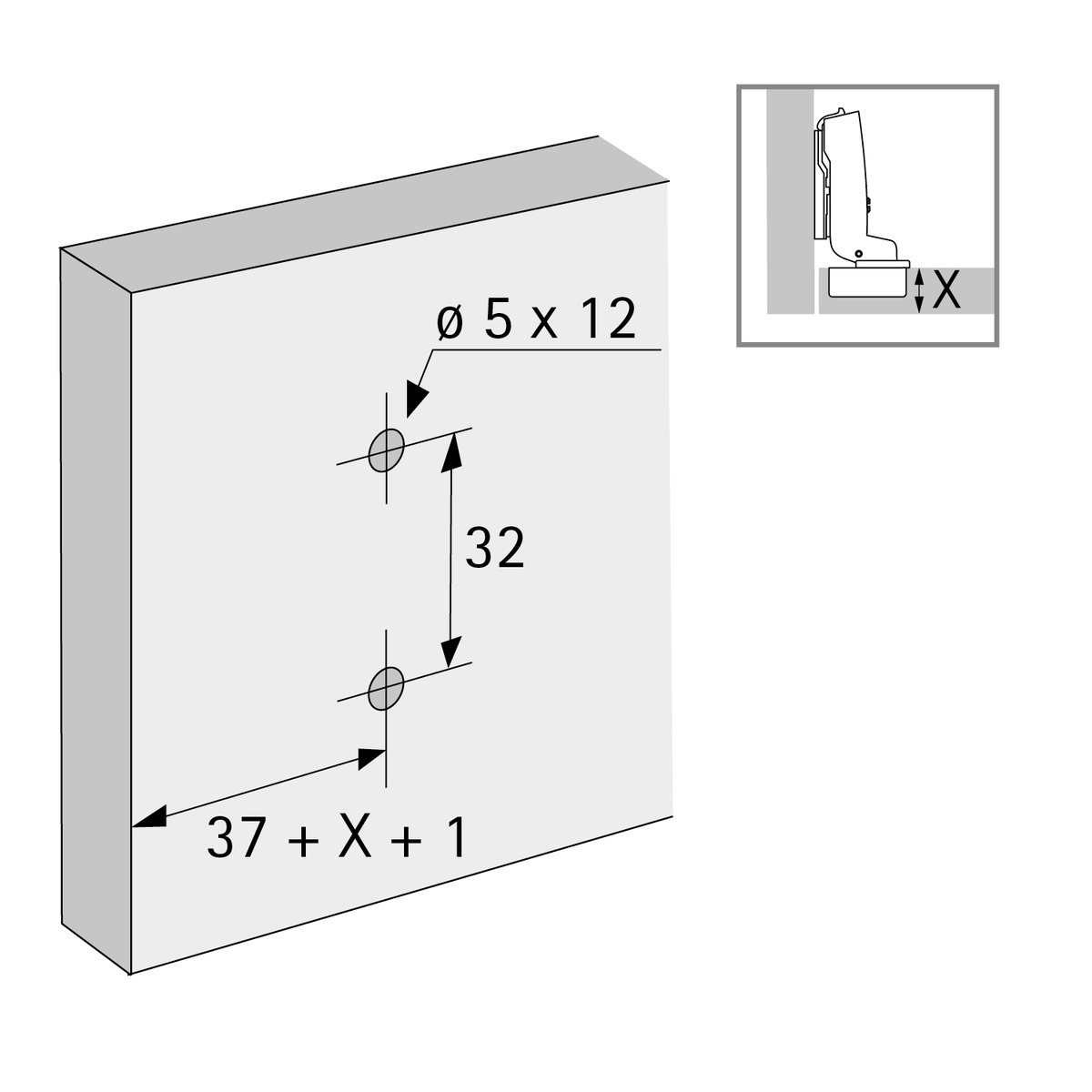

- For Hole line 37 x 32 mm
- Installation with expanding sockets (for drilling ø 5 x 12 mm)
- Distance 0.0 mm
- Adjustment range + 2 mm / – 2 mm
- steel nickel plated
| Distance mm | 0, 1.5, 3, 5 |
|---|
