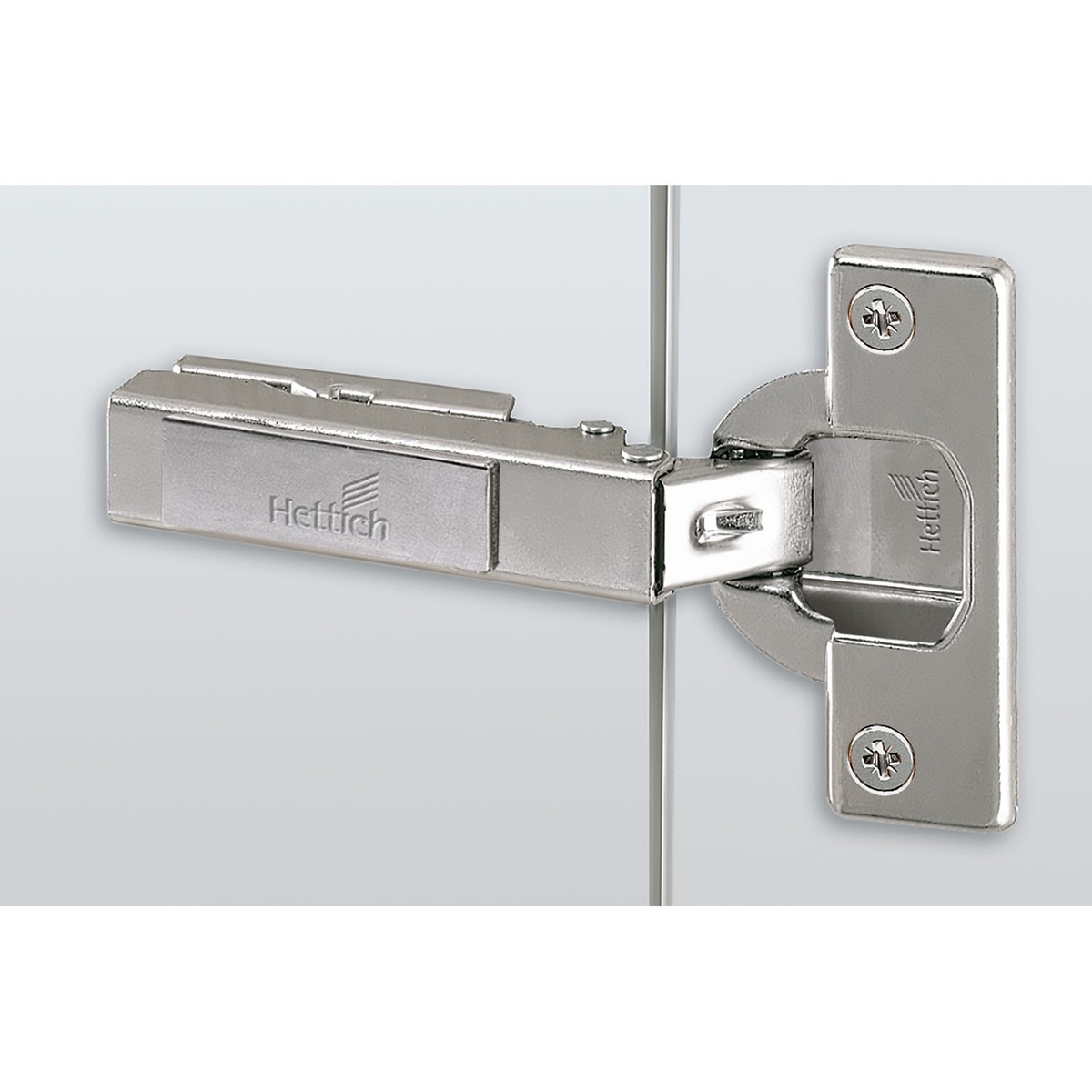

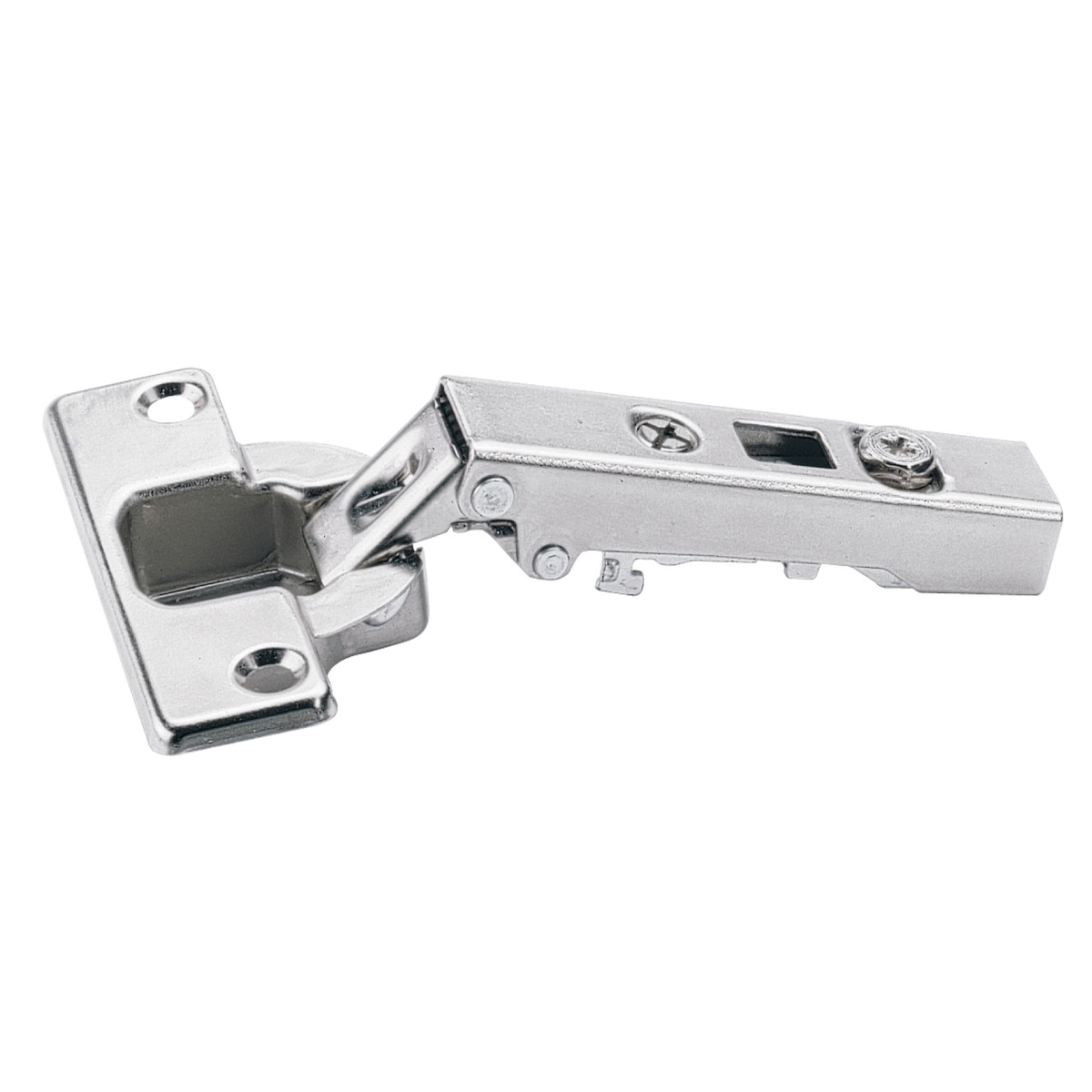

- 110° Intermat hinge
- With self closing feature (Intermat 9943)
- Quality classification under EN 15570, Level 3
- Opening angle 110°
- For door thickness 15 – 25 mm
- Door mounting option overlay (B 12.5)
- TH – drilling pattern 52 x 5.5 mm
- Cup depth 11.6 mm
- Installation for screwing on
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2.5 mm / -1.5 mm
- Height adjustment at mounting plate
- steel nickel plated
| Mounting Option | Full Overlay, Half Overlay, Inset |
|---|---|
| Assembly | Screw On, Press In, Flash Fast Assembly, Expanding Sockets |
