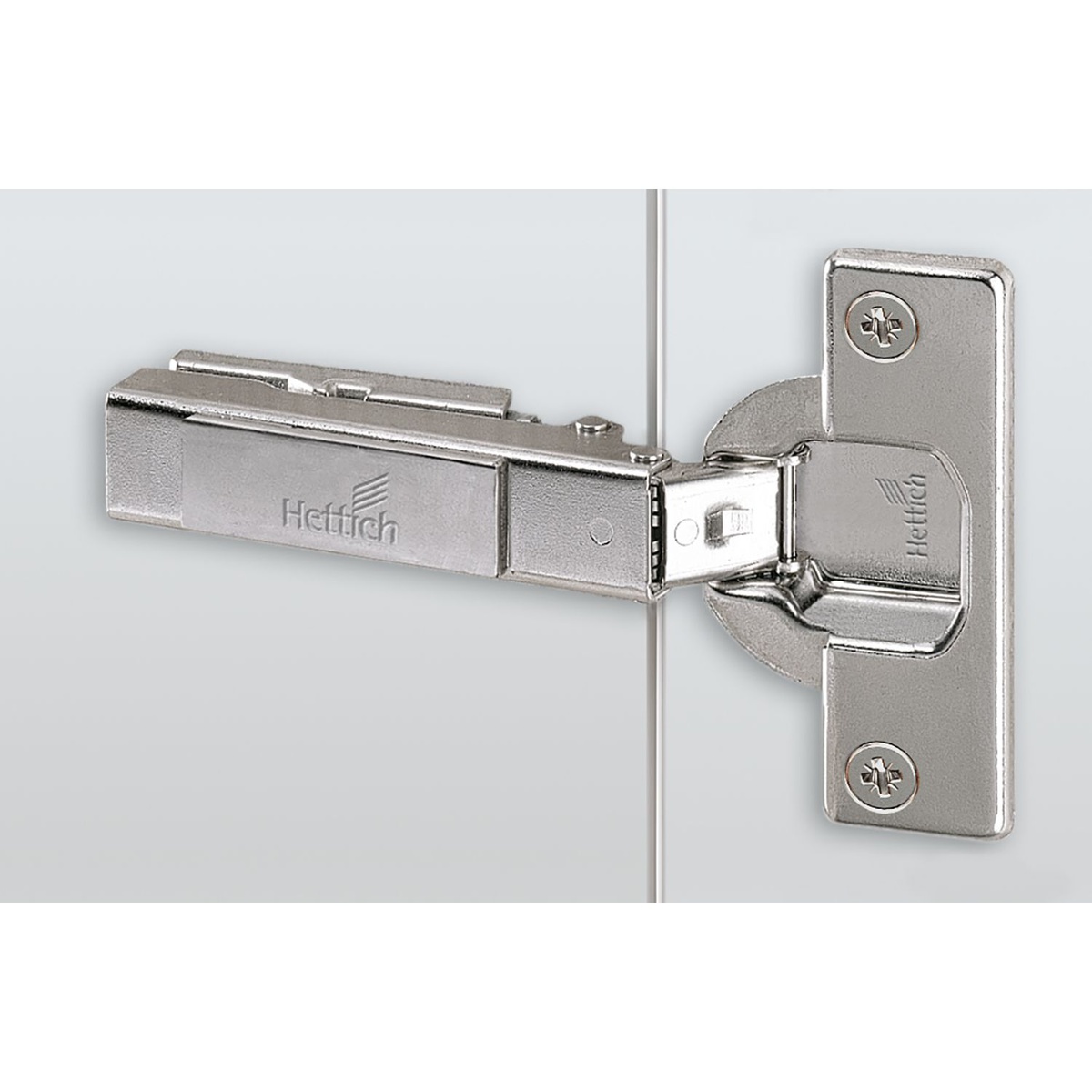

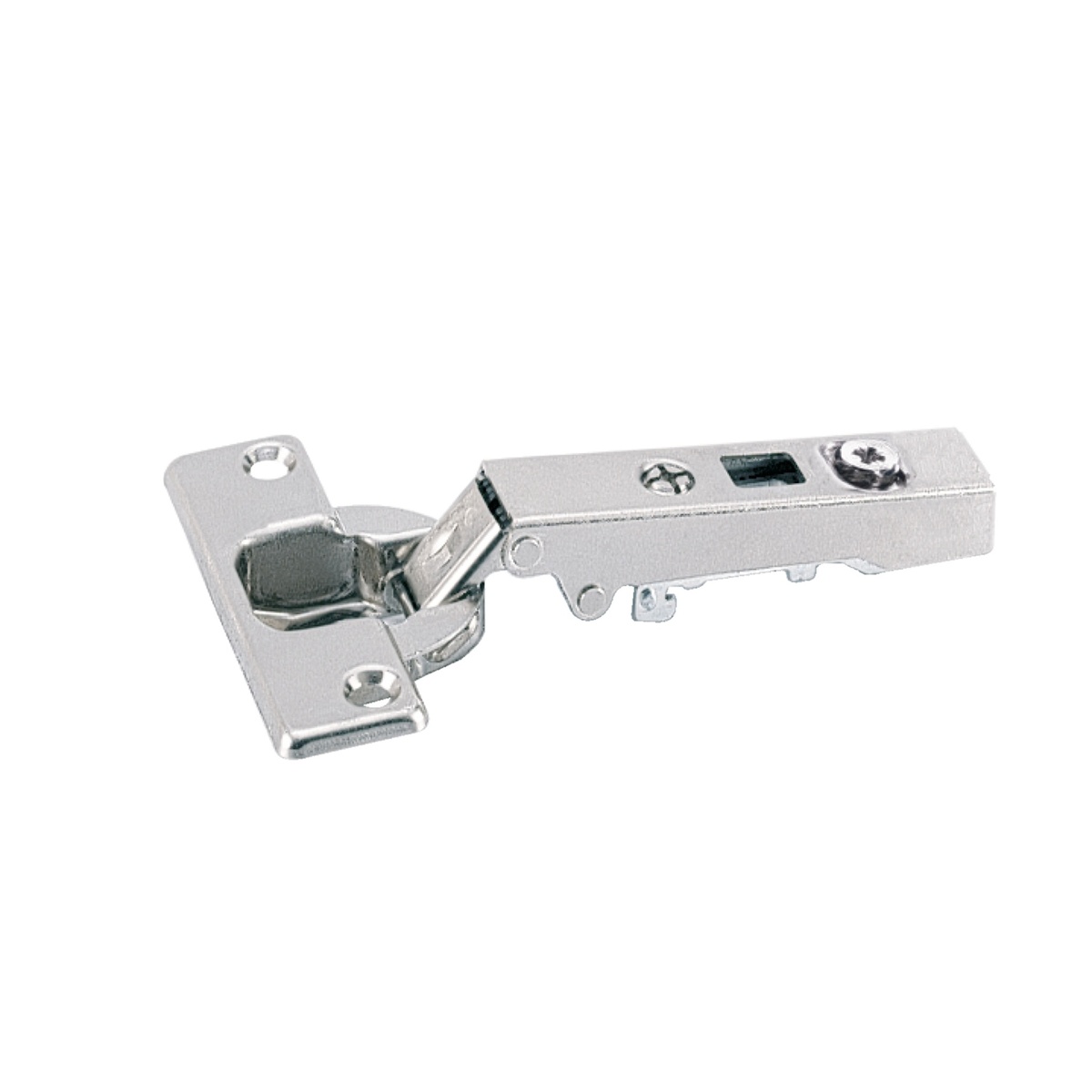

- Intermat thick door hinge, door thickness up to 32 mm
- With self closing feature (Intermat 9936)
- Quality classification under EN 15570, Level 2
- Opening angle 95°
- For door thickness 14 – 32 mm
- Door mounting option overlay (B 12.5)
- TH – drilling pattern 52 x 5.5 mm
- Cup depth 10.5 mm
- Installation for pressing in
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +2.5 mm / -1.5 mm
- Height adjustment at mounting plate
- steel nickel plated
| Mounting Option | Full Overlay |
|---|---|
| Assembly | Press In |
