Special Hinge Optimat Plus 4 FM & Mount Combo

You must be logged in to purchase

SKU: 370102-n Category: Accessories & Misc

Description

Suitable for all frame widths
Quality classification under EN 15570, Level 1
For door thicknesses from 13 mm
Cup diameter 35 mm
Cup depth 11 mm
With self closing feature

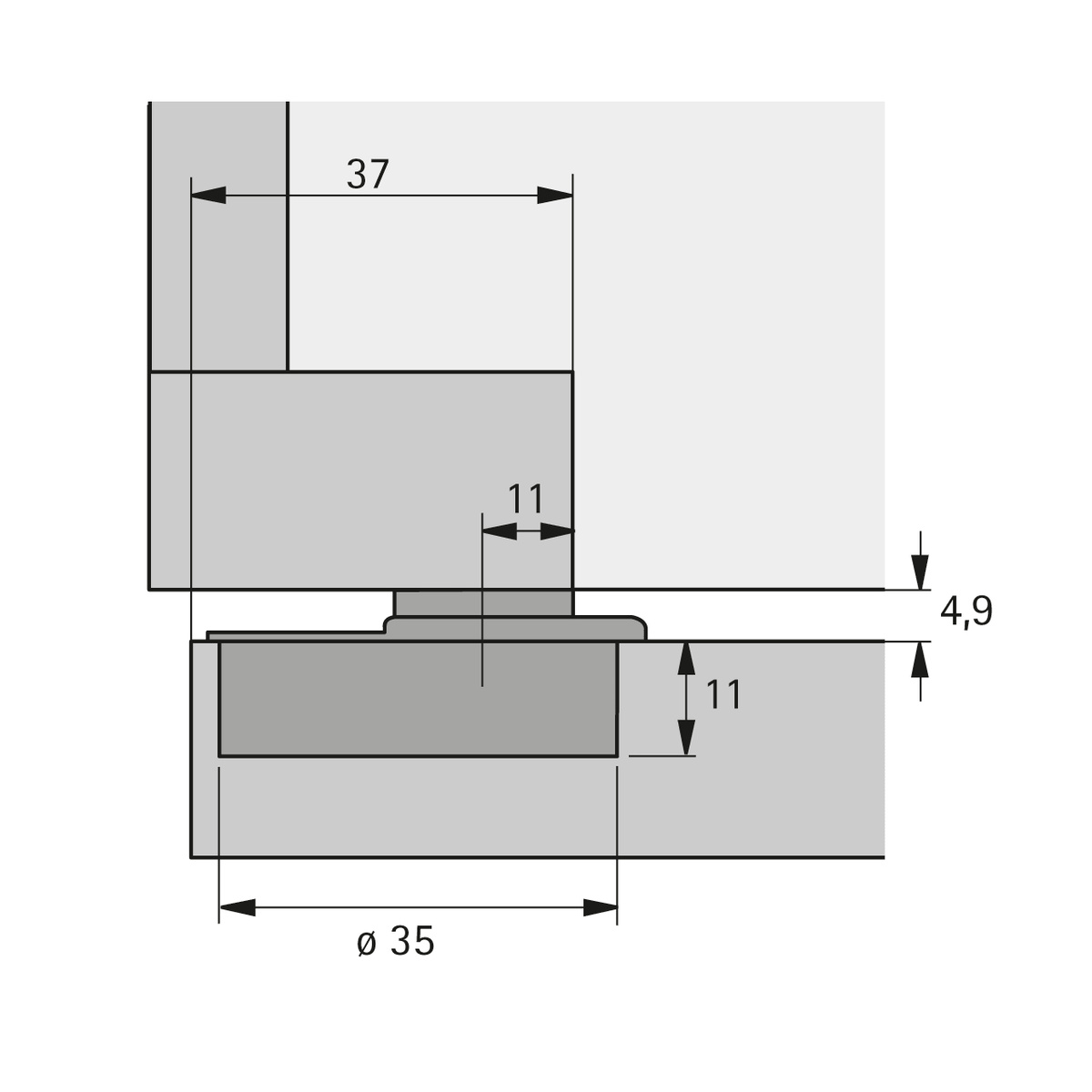

Door overlay at least 37 mm (hinge arm flush with the edge of the frame)
Cup distance 2.5 mm
Overlay adjustment + 1.5 mm / – 1.5 mm
Height adjustment + 2 mm / – 2 mm
Steel nickel plated
