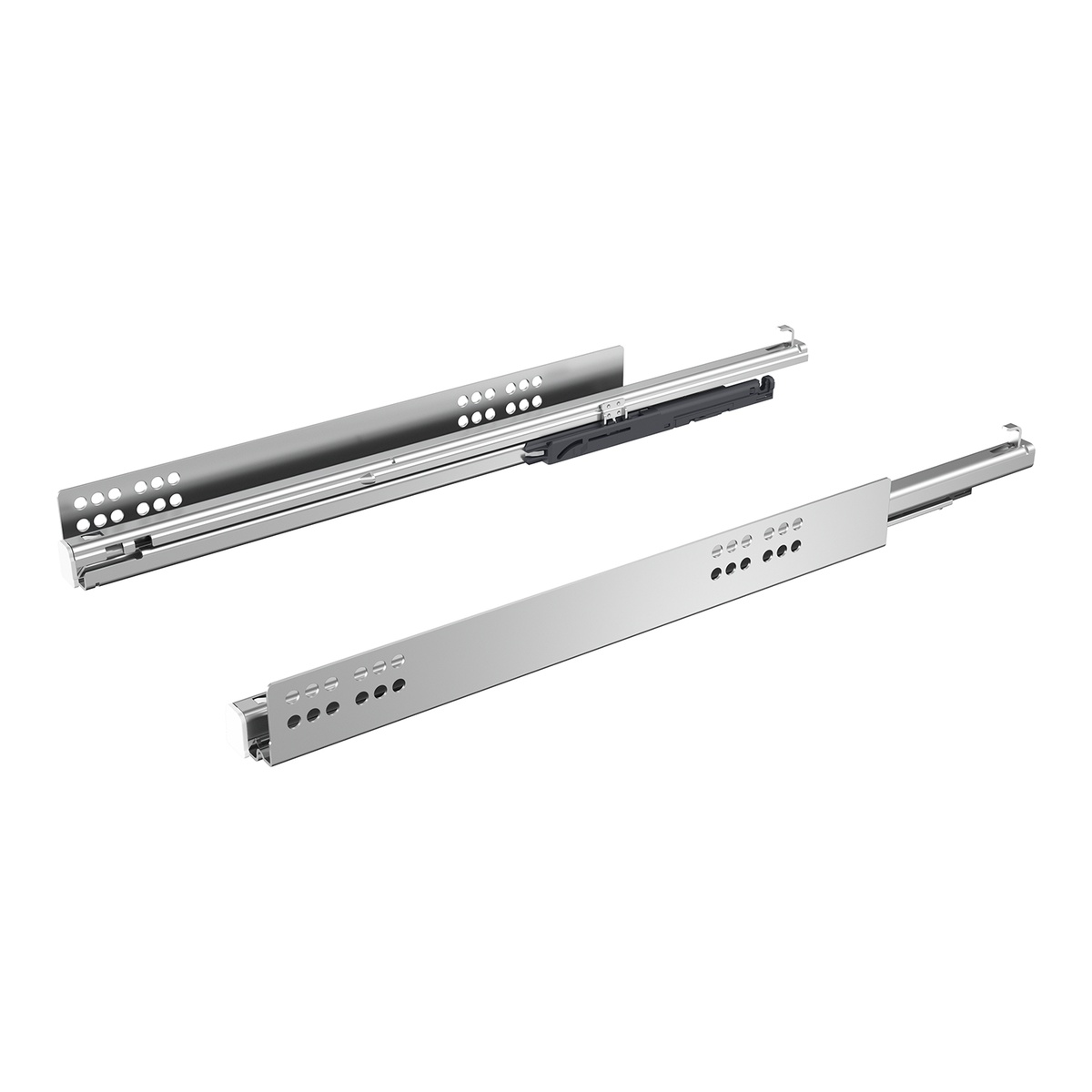

Quadro V6:
- Slide on installation with catches and tool-less height adjustment
- Integrated Silent System
- Optional: catch and plug for pull-out shelves
- Optional: Pull-out shelf locating catch
- Suitable for drawers with a side profile thickness of up to 16 mm
- Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
- Load capacity to EN 15338, Level 3
- Galvanised steel
Advice:
- Using catches/plugs for pull-out shelves reduces the length of the pull-out shelf by 12 mm (nominal length NL – 12 mm)

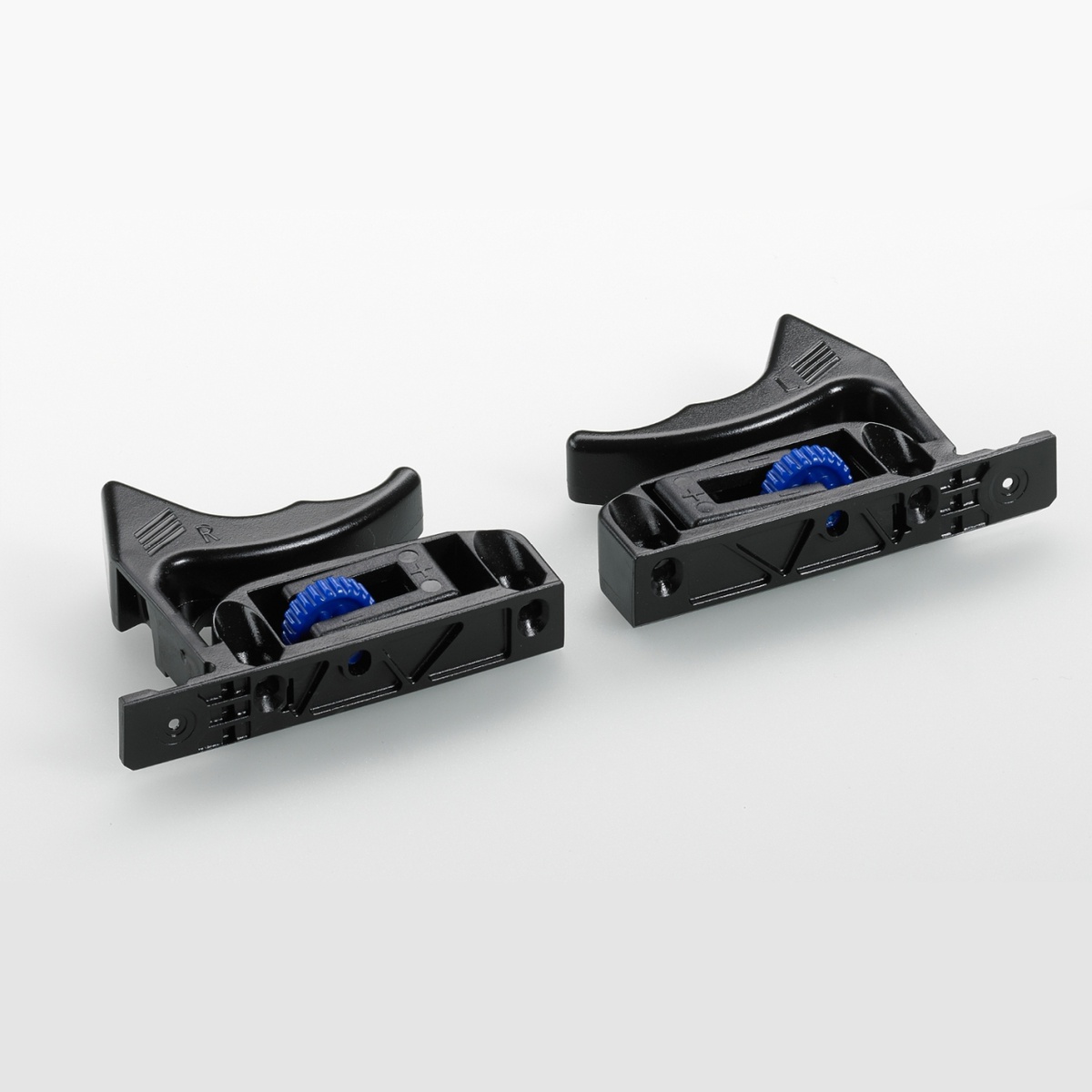

Clips:
- Application: Quadro V6, Quadro 25
- For secure, tool-less connection of Quadro runners and wooden drawers
- Infinite height adjustment up to + 2 mm via a knurled wheel
- Plastic, black
| Length mm | 280, 300, 350, 380, 400, 420, 450, 480, 500, 520, 550, 580, 600 |
|---|
