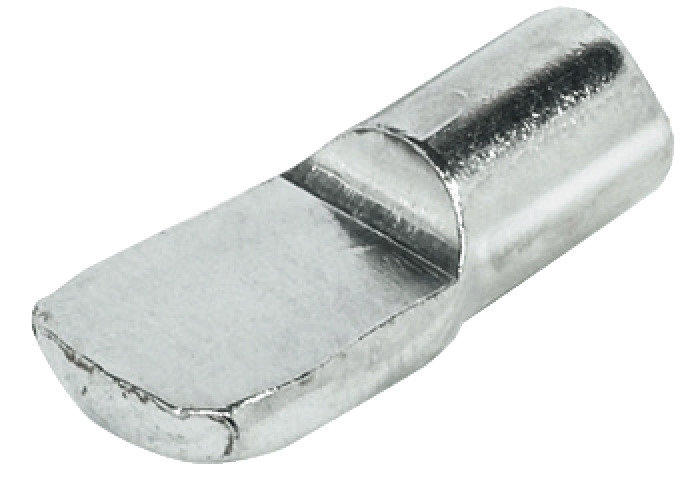

Nickel Plated Support

You must be logged in to purchase

SKU: 500124-n Category: Supports & Connectors

Description

Area of application

for wooden shelves

Installation

For insert fitting

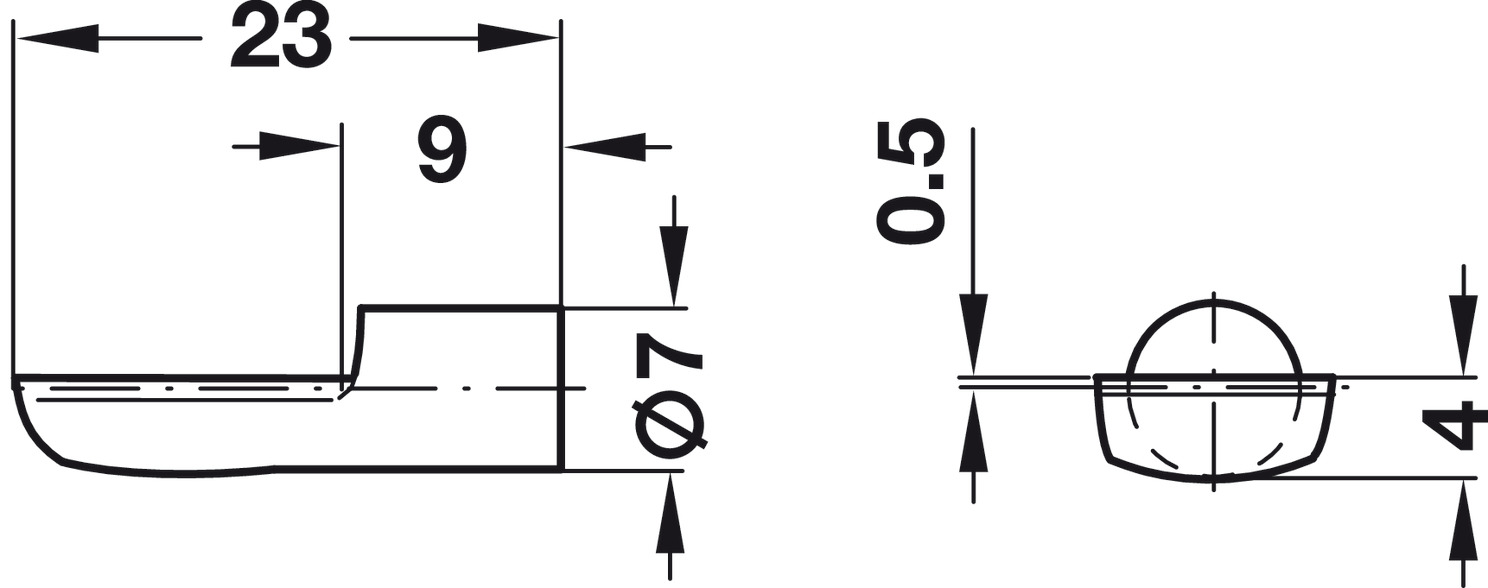

For drill hole Ø

7.00 mm

Support size

0.50 mm

Pin length

9.00 mm

Version

load bearing capacity 100 kg (in compliance with DIN EN 1727:1998-06)

Material

Steel

Load bearing capacity with 4 shelf supports

100.00 kg

Note on load bearing capacity

recommended load-bearing capacity

Installation reference

for inserting into drill hole Ø 7 mm or sleeve
