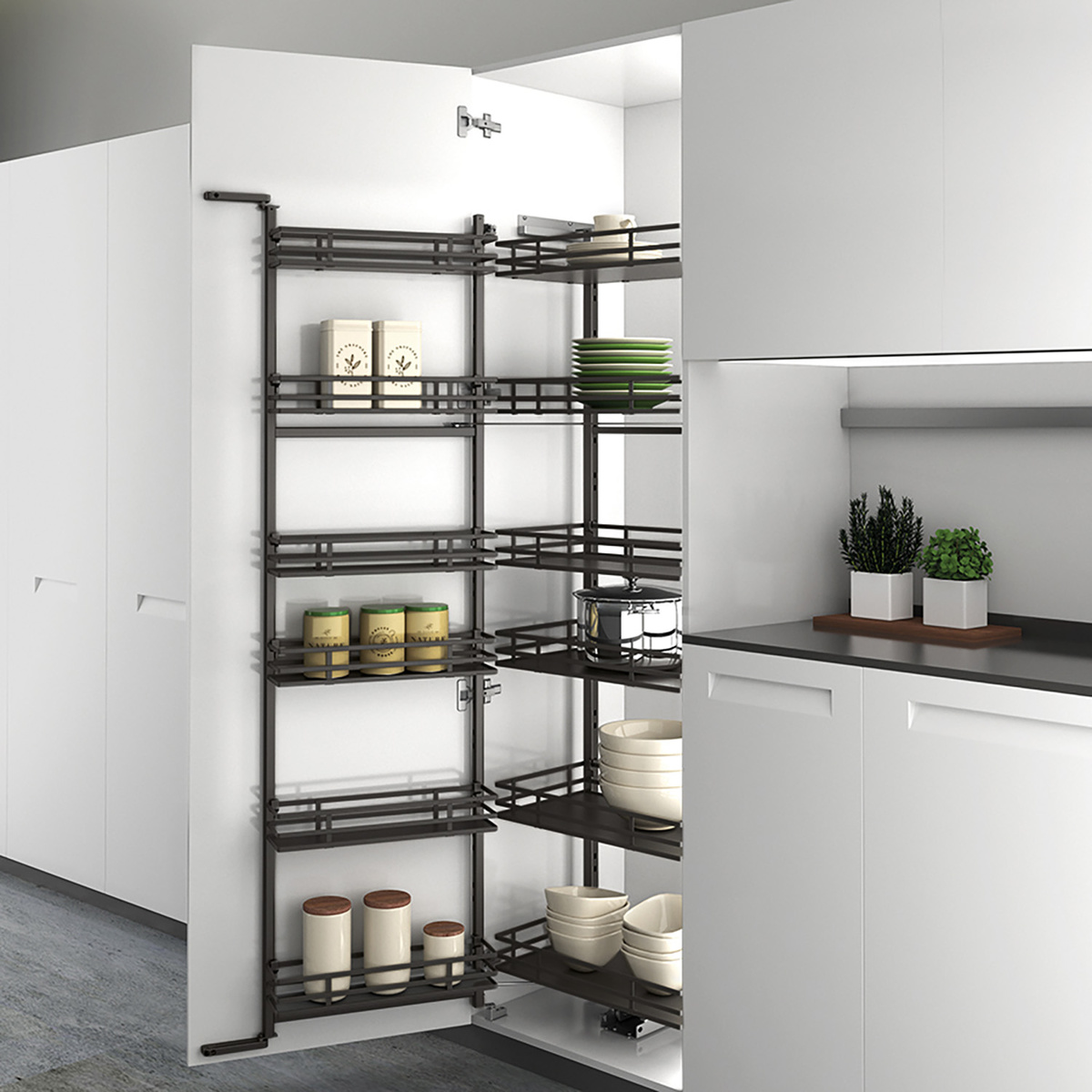

Iseo 400 Pull Out Frame Set (Anthracite)

• Set for a complete unit
• Local stock

• Swivelling pull-out for larder units in 600 mm cabinet body width
• The pull-out shelf is pulled forwards when the door is opened
• Direct access to everything in the cupboard
• Load capacity: 5 kg per pull-out shelf for door shelving, 10 kg per pull-out shelf for the pull-out frame
• For installation on left or right
• Can also be used for 2 door larder units without centre panel

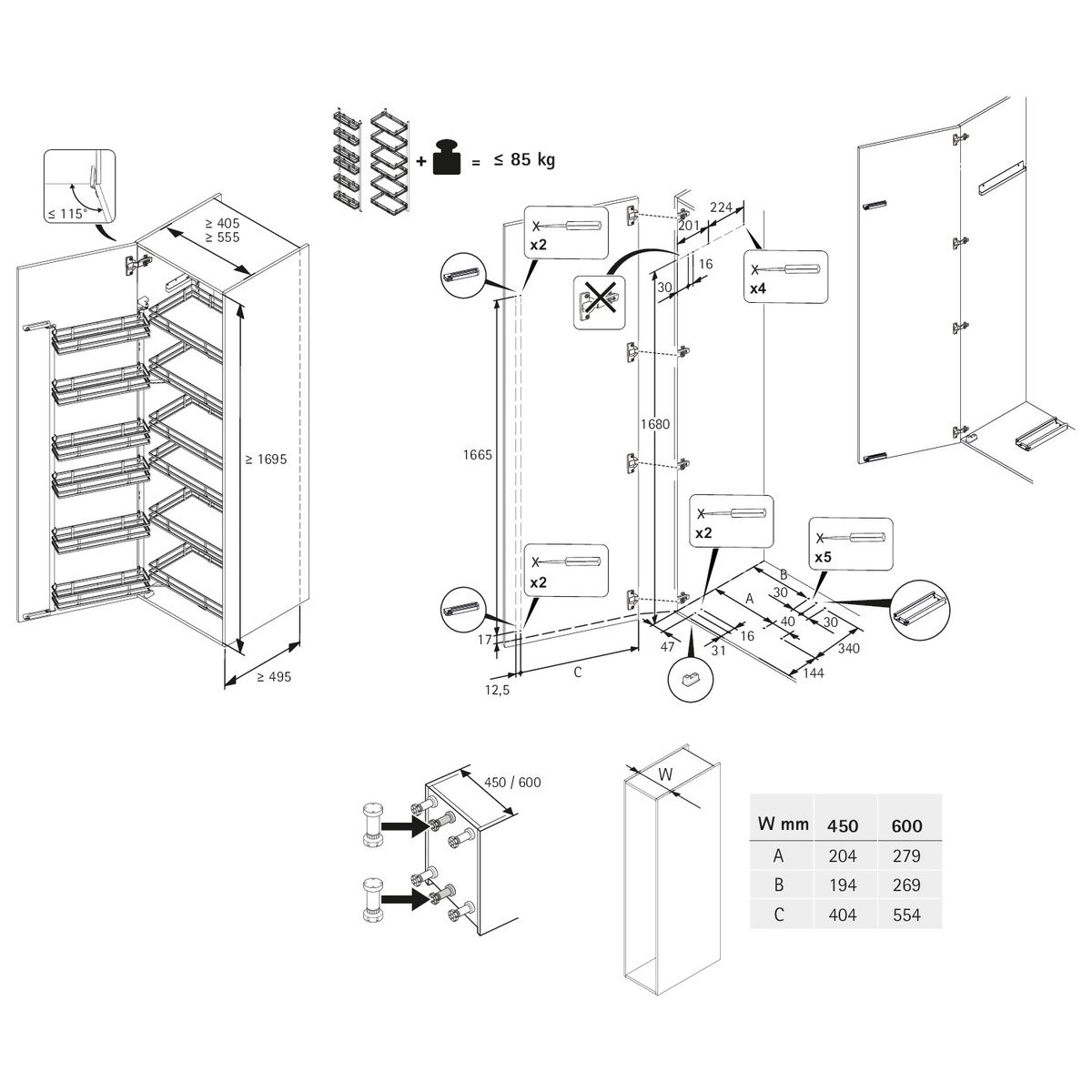

• Minimum inside cabinet width 555 mm
• Minimum inside cabinet body depth 495 mm
• Minimum inside cabinet body height 1695 mm

Set comprises:

• 1 pull-out frame
• 1 door frame
• 6 pull-out shelves for the pull-out frame (flat wire railing, HDF panel, each with 10 kg load capacity)
• 6 pull-out shelves for door shelving (flat wire railing, HDF panel, each with 5 kg load capacity)
• 1 pull-out mechanism incl. guides
• Fixing brackets
